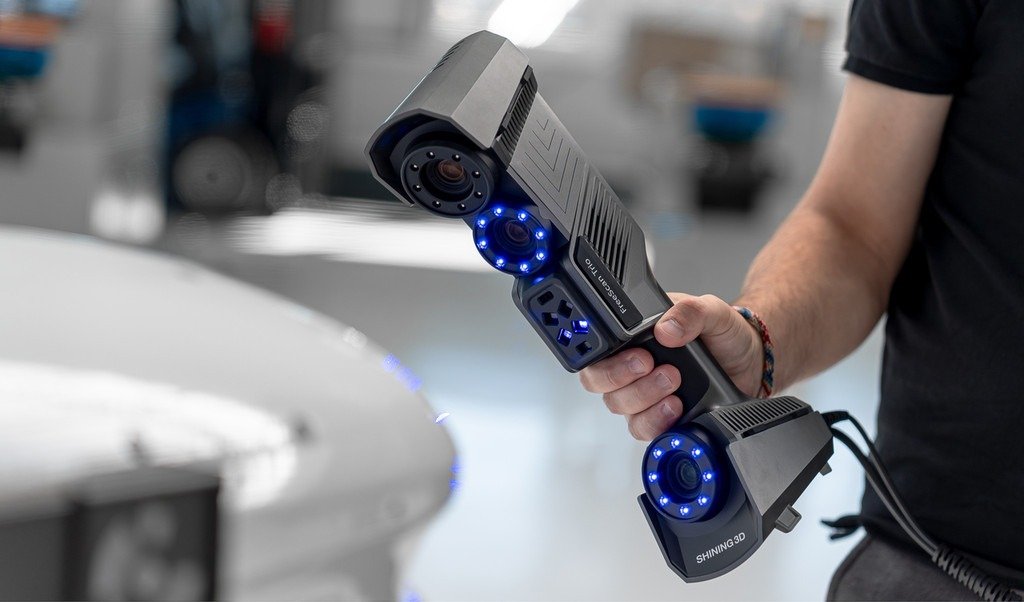

FreeScan Trio World’s First Marker-Free Laser 3D Scanner

Technical Details

• Product Model: FreeScan Trio
• Scan Mode:                  |           Multiple Lines Scan        |          Single Line Scan           |     Fine Detail Scan      |        98 Laser Line Scan      |
• Light Source:                |                  26 lines                      |        Single Laser Line            |    7 Parallel Lines        |             98 Laser Line            |
• Working Distance:       |                  300mm                      |                  300mm                   |             200mm            |                  300mm                 |
• Scan Accuracy:                                                                                   Up to 0.02 mm                                                 |                                               |
• Volumetric Accuracy:                                      0.02 + 0.03mm/m (0.02 + 0.015mm/m with photogrammetry)
• Scan Speed:                                                                                Up to 3,010,000 points/s
• Scan Depth:                                                                                             360mm
• FOV:                                                                                                     650 x 580mm
• Point Distance:                                                                                      0.01-3mm
• Laser Class:                                                                                   Class II  (eye safe)
• Connection Standard:                                                                            USB 3.0
• Dimensions:                                                                            331 mm x 120 mm x 76 mm
• Weight:                                                                                                        985g
• Power Input:                                                                                        DC: 12V, 5.0 A
• Operating Temperature Range:                                                           20°C-40°C
• Operating Humidity Range:                                                                  10%-90%
• Certifications:                                                                BIS,   CE，FCC，ROHS，WEEE，KC，FDA，UKCA，IP50
•  Recommended System Configuration:                OS：Win10/ 11，64 bit；Graphics card: NVIDIA GTX/RTX series cards，
  higher or equal to GeForce RTX 3060；
  Video memory：≥6 G；Processor：I7-10700；Memory：≥32 GB
