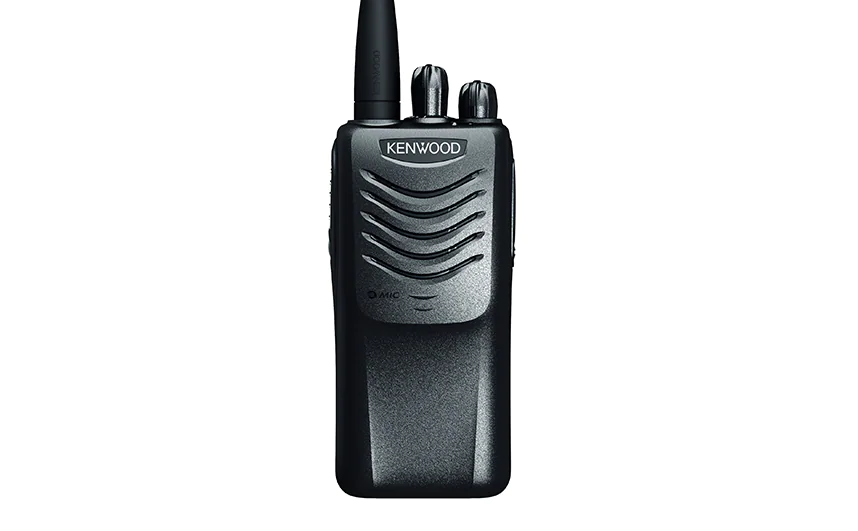

TK-3000_M6

Slim, thin and light – KENWOOD’s TK-3000 is supremely easy to handle and to operate. Yet this handy compact radio is extremely reliable, meeting the famously tough MIL-STD 810 C/D/E/F and G specifications. With its well-balanced performance, it makes perfect business sense – especially for inventory control and service industry operations.perfect business sense – especially for inventory control and service industry operations.

Category
Enquiry

SHOP WITH CONFIDENCE

  • 7 Days Easy Returns
  • Quick After-sale Support

Description

Thin & Lightweight

Thinner and lighter – the TK-3000 is ideal for hooking on a belt or even slipping into a coat pocket. The slim design fits neatly in your hand and it weighs only 203g with the Li-Ion battery.

16 Channels with Scan Function

This compact, user-friendly portable offers a total of 16 channels, and each can be assigned a QT and DQT tone key to eliminate unwanted signals. You can also assign the 16th channel, if free, to the scan function. This added convenience means that the PF key is freed up for some other function.

All-in-one Package

The side PF key can be programmed for enhanced operating ease, while the adjustable Hold feature doubles the number of functions at yourfingertips.

All-in-one Package

The TK-3000 is ready for use immediately after purchase. It comes with all necessary accessories, including a charger, battery pack and antenna. A handy belt clip is also provided. There is no need to buy extra accessories for normal operation.

Robust & Reliable

The TK-3000 is built to survive hard knocks, drops and all-weather environments. It meets or exceeds the stringent IP54 dust and water intrusion standards as well as the MIL-STD 810 C, D, E, F & G environmental standards.

OTHER FEATURES

Output Power 5W (VHF) / 4W (UHF) QT / DQT
DTMF Enc. (PTT ID, Autodial)
Priority Scan
Windows® Programming and Tuning
Wide/Narrow Channel Bandwidth
VOX ready
Battery-Saver
Busy Channel Lockout
Time-Out-Timer
Low-Battery Alert
Tri-Colour LED
Wired Clone

General Features

Thin & Lightweight
16 Channels with Scan Function
Programmable Function Key with Hold
All-in-one Package
Robust & Reliable
Output Power 5W (VHF) / 4W (UHF)
QT / DQT
DTMF Enc. (PTT ID, Autodial)
Priority Scan
Windows® Programming and Tuning
Wide/Narrow Channel Bandwidth
VOX ready
Battery-Saver
Busy Channel Lockout
Time-Out-Timer
Low-Battery Alert
Tri-Colour LED
Wired Clone
GENERAL
Frequency Range
Type 1
Type 2		 440 ~ 480 MHz
400 ~ 430 MHz
Number of Channels 16 channels
Channel spacing
Wide / Narrow		 25 kHz / 12.5 kHz
Channel Step 5, 6.25 kHz
Operating Voltage 7.5 V DC ± 20%
Battery Life (5-5-90 duty cycle, save off)
with KNB-63L		 Approx. 10 hours
Operating Temperature -20°C to +60°C
Frequency Stability 2.5 ppm
Antenna impedance 50 Ω
Channel Frequency Spread 40 MHz
Dimensions (W x H x D),
Projections not included
Radio Only
with KNB-63L		 54 x 113 x 14 mm
54 x 113 x 24.9 mm
Weight (net)
Body only
with KNB-63L		 Approx. 130 g
Approx. 203 g
FCC ID
Type 1
Type 2		 ALH437300
ALH437301
FCC Compliance Parts 15 / 90
RECEIVER
Sensitivity (12 dB SINAD)
Wide / Narrow		 0.25 µV / 0.28 µV
Selectivity
Wide / Narrow		 70 dB / 60 dB
Intermodulation Distortion
Wide / Narrow		 65 dB / 60 dB
Spurious Response 60 dB
Audio Distortion Less than 5%
Audio Output 500 mW / 8 Ω
TRANSMITTER
RF Power Output
High / Low		 4 W / 1 W
Spurious Response 65 dB
Modulation Distortion
Wide / Narrow		 16K0F3E / 11K0F3E
FM HUM & Noise
Wide / Narrow		 45 dB / 40 dB
Audio Distortion Less than 5 %
