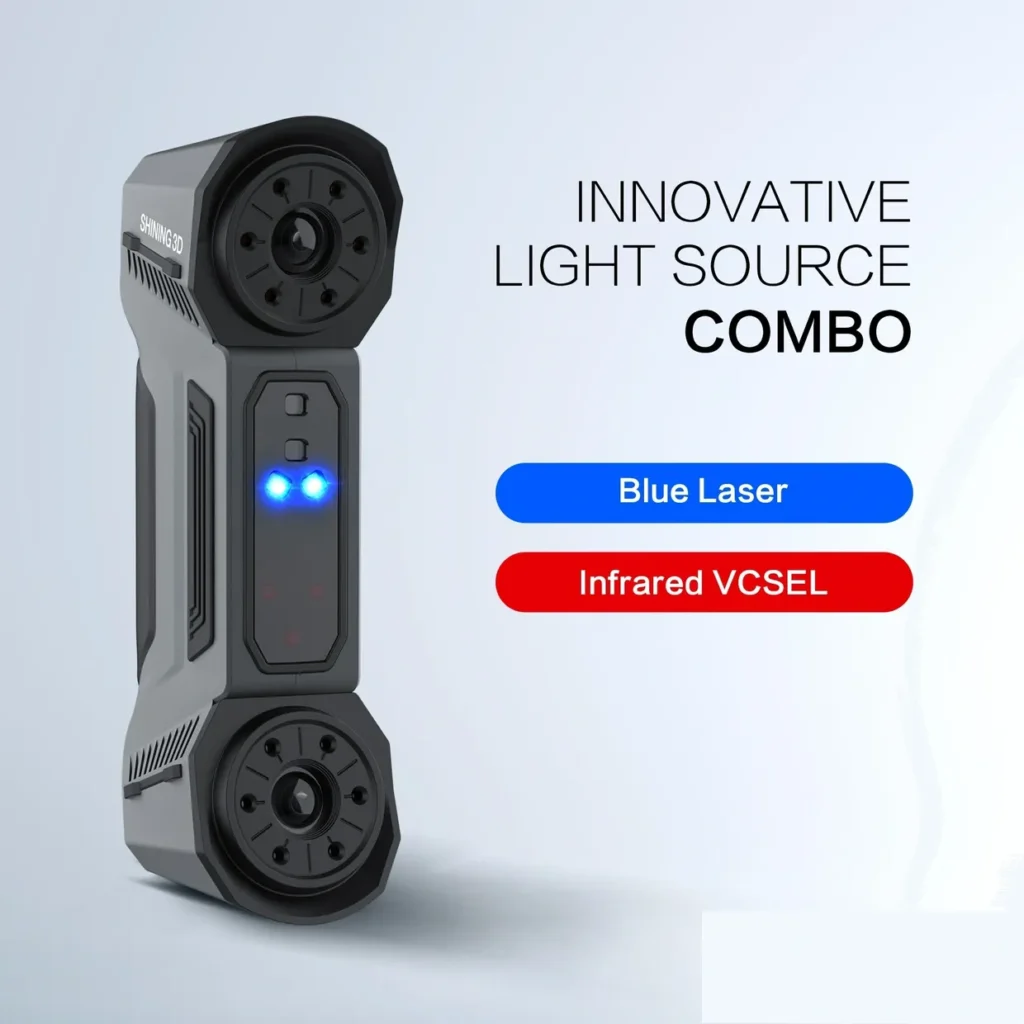

FreeScan Combo IR + Blue Laser 3D Scanner

Technical Details

• Product Model: FreeScan Combo
• Scan Mode:                  |           Multiple Lines Scan        |          Single Line Scan           |          Fine Scan            |            Infrared Scan            |
• Light Source:                |                  26 lines                      |        +1-line blue laser            |    7 Parallel Lines        |       VCSEL Light Source      |
• Working Distance:       |                  300mm                      |                  300mm                   |             200mm            |                  300mm                 |
• Scan Accuracy:                                                                                  Up to 0.02 mm                                                  |                                               |
• Volumetric Accuracy:                                                             0.02 mm + 0.033 mm/m                                           |                                               |
• Scan Speed:                                                                                 1,860,000 points/s                                                 |        2,250,000 points/s        |
• Scan Depth (Depth of field):                                                               360mm                                                            |              200-1240mm           |
• Max FOV:                                                                                       520mm X 510mm                                                 |         430mm X 430mm        |
• Point Distance:                                                                                0.05mm – 3mm                                                   |              0.2mm – 3mm          |
• Laser Class:                                                                                              Class II  (eye safe)
• Connection Standard:                                                                                     USB 3.0
• Dimensions:                                                                                          193mm x 63mm x 53mm
• Weight:                                                                                                                 620g
• Power Input:                                                                                                  DC: 12V, 5.0 A
• Operating Temperature Range:                                                                      20°C-40°C
• Operating Humidity Range:                                                                              10%-90%
• Certifications:                                                                BIS,   CE，FCC，ROHS，WEEE，KC，FDA，UKCA，IP50
•  Recommended System Configuration:                OS：Win10/ 11，64 bit；Graphics card: NVIDIA GTX/RTX series cards，
  higher or equal to GeForce RTX 3060；
  Video memory：≥6 G；Processor：I7-10700；Memory：≥32 GB
