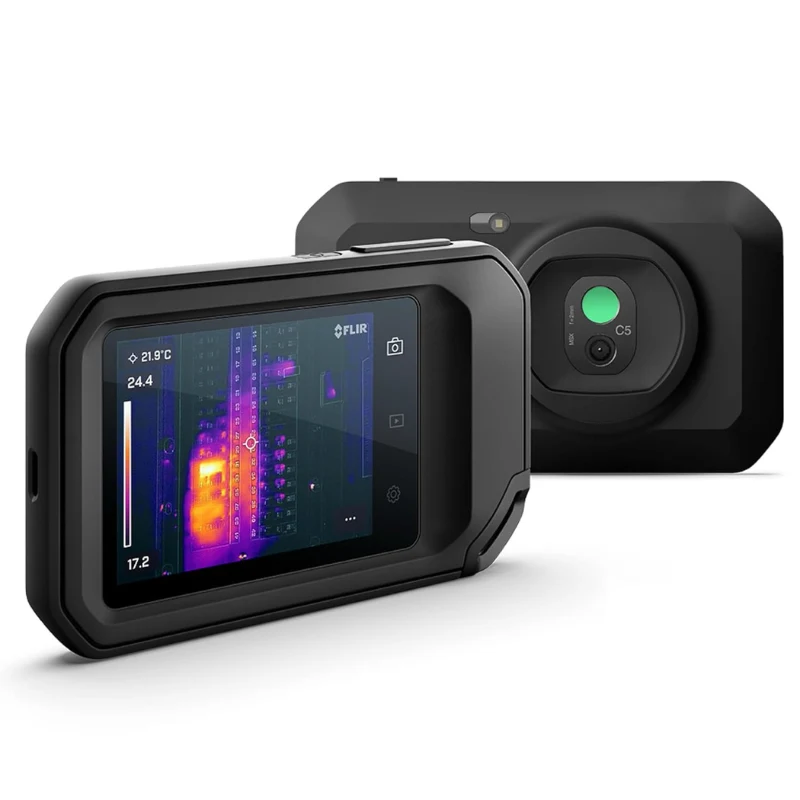

FLIR C5 Compact Thermal Camera

Description

FLIR C5 Compact Thermal Camera – Pocket-Sized Power for Professionals

The FLIR C5 Compact Thermal Camera is a smart, rugged, and portable solution for technicians, inspectors, and first responders who need fast thermal diagnostics on the go. Despite its compact size, the C5 delivers serious performance with MSX-enhanced imaging, cloud connectivity, and accurate temperature measurement. Whether you’re troubleshooting electrical panels, detecting building leaks, or verifying HVAC performance, the C5 helps you see heat patterns clearly and report findings efficiently—all from your palm.

Key Features Of FLIR C5 Compact Thermal Camera

1. Accurate Thermal Imaging with Exceptional Range

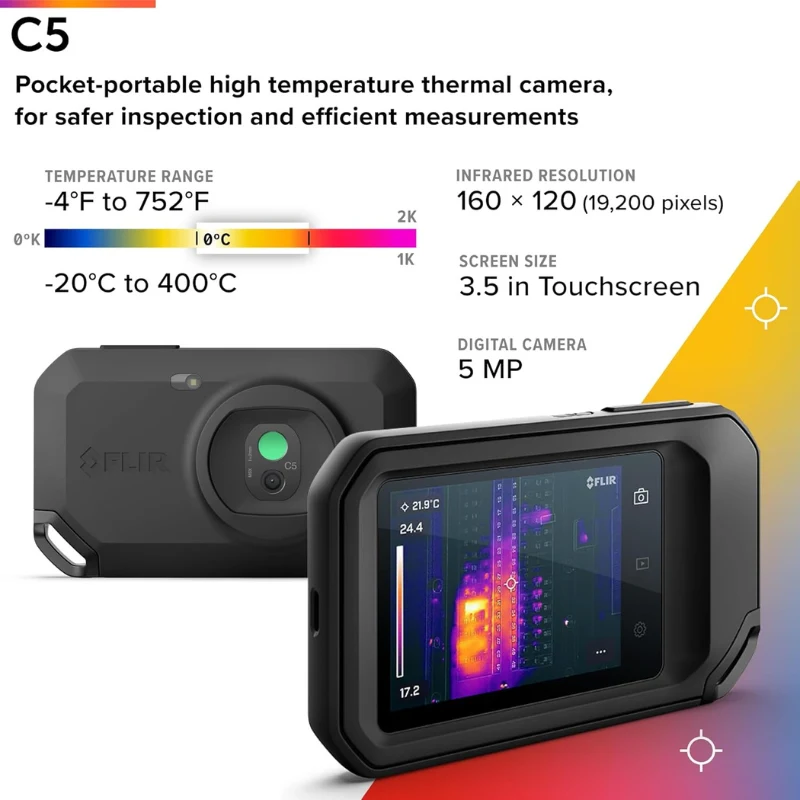

The C5 detects temperature differences from -20°C to 400°C (-4°F to 752°F) with an accuracy of ±3°C (±5.5°F), making it suitable for everything from home inspections to industrial system checks. With a thermal sensitivity of less than 70 mK, it reveals even the smallest heat variations, while its spectral range of 8 to 14 µm ensures detailed, reliable thermal capture in any lighting.

2. MSX, Picture-in-Picture & Visual Modes Built In

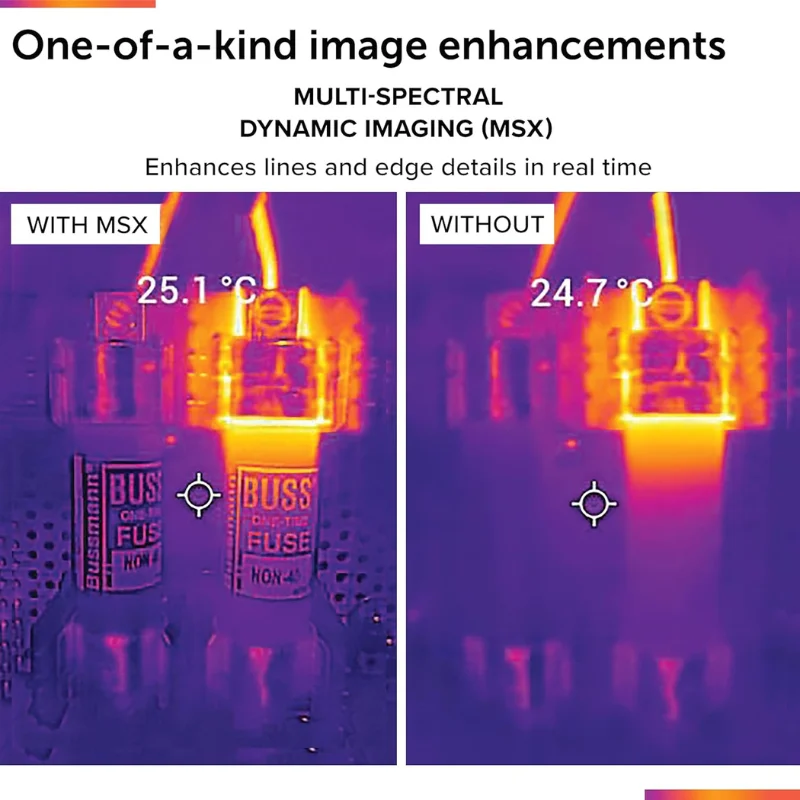

The C5 offers multiple image modes, including standard thermal, visual, MSX (Multi-Spectral Dynamic Imaging), and Picture-in-Picture. MSX embosses key visual details onto the thermal view for better interpretation, while Picture-in-Picture provides a clear comparison of IR and visible data in one frame, perfect for identifying exact problem areas.

3. 5 MP Visual Camera & Responsive Touch Interface

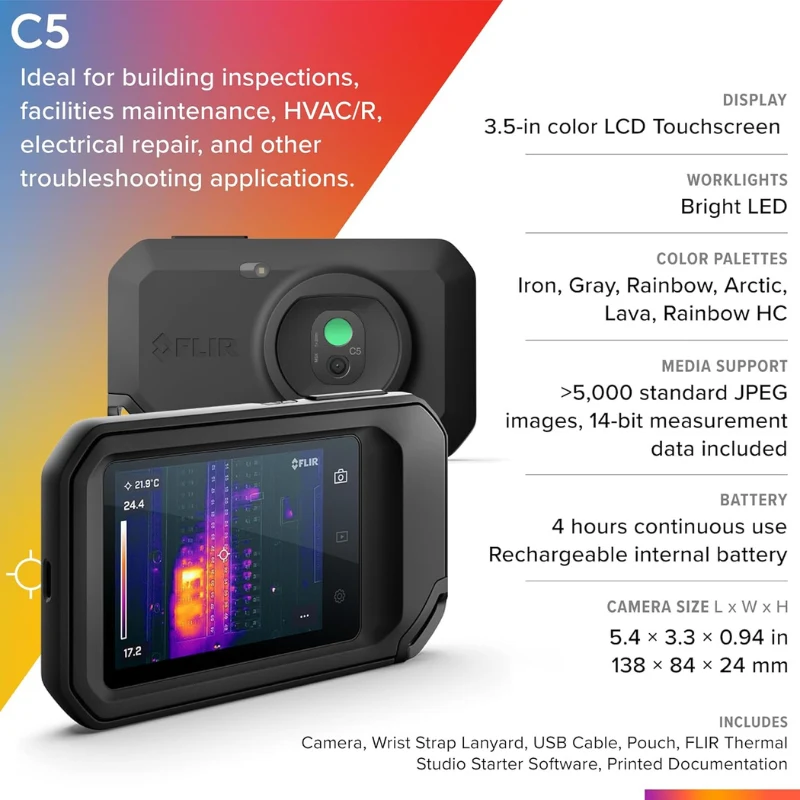

With its built-in 5 MP digital camera and capacitive touchscreen, the C5 delivers crisp visual reference images alongside thermal scans. Navigate image galleries, switch modes, and adjust image settings easily with the intuitive 3.5-inch touch display. Its simplified interface makes operation quick and effortless, even for new users.

4. Smart Storage with FLIR Ignite Integration

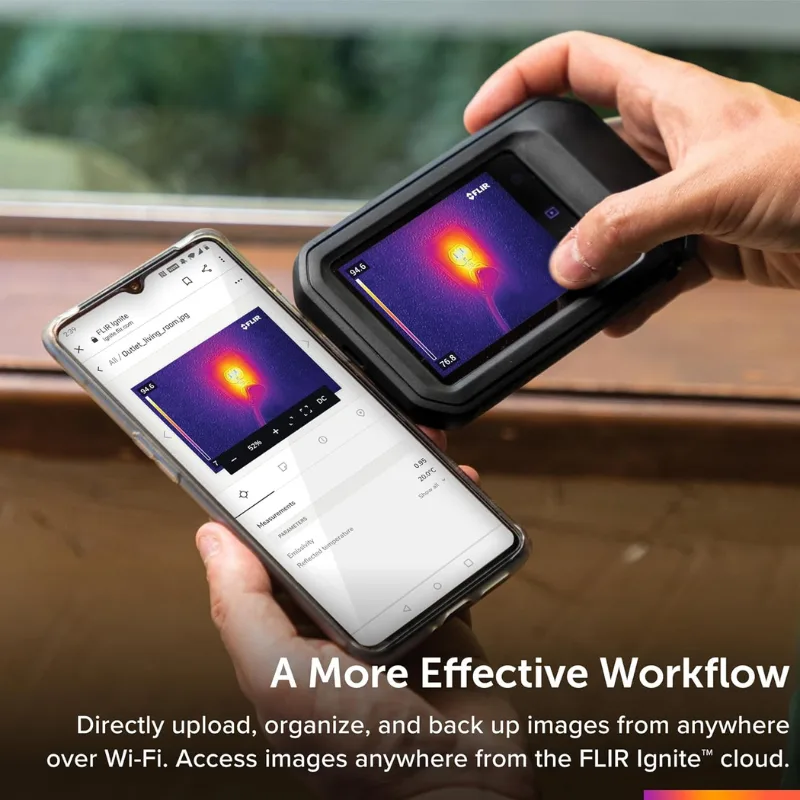

Equipped with internal memory and FLIR Ignite cloud support via Wi-Fi, the C5 makes image backup and sharing incredibly convenient. You can organize photos into custom folders, annotate findings, and upload them in real-time without needing to transfer files manually or use external memory devices.

5. Tough, Job-Ready Build Quality

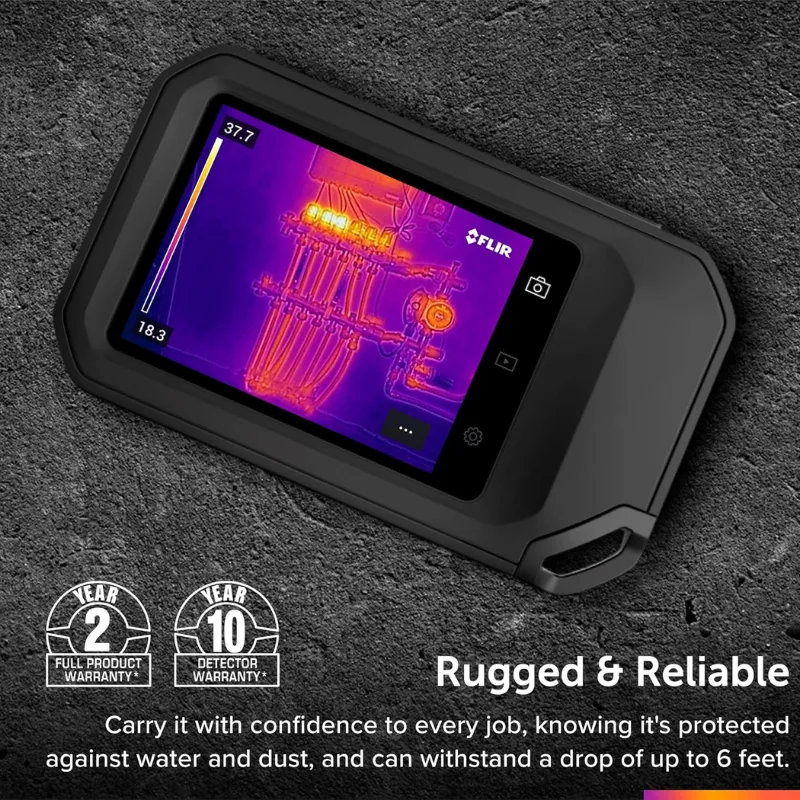

The C5 is built to survive harsh job sites with an IP54 rating for dust and water resistance and a drop-tested design that can withstand falls from 2 meters (6.6 ft). Compact at just 138 x 84 x 24 mm, it fits easily in your pocket or toolbelt and is powered by a built-in Li-ion battery offering up to 4 hours of runtime. Recharging is quick via USB-C in just 2 hours.

Why You’ll Love the FLIR C5 Compact Thermal Camera

1. All-in-One Pocket Inspection Tool
Smaller than most smartphones, the C5 combines thermal and visual imaging in a single tool you can take anywhere. It’s ideal for quick diagnostics, field checks, or hard-to-reach inspections where traditional equipment won’t fit.

2. Accurate, Ready-to-Use Results on the Spot
Focus-free optics, adjustable emissivity, and temperature correction settings like atmospheric compensation give you dependable, professional-grade measurements right out of the box—no calibration headaches or setup delays.

3. Instant Cloud Connectivity for Smarter Workflows
Thanks to its integration with FLIR Ignite, you can upload images instantly via Wi-Fi, annotate issues, and organize data on the go—making it easier to collaborate or finalize reports without needing to go back to the office.

4. Built to Endure Demanding Conditions
Rated for temperatures as low as -10°C and up to 50°C, and tested for storage between -40°C and 70°C, the C5 holds up in hot attics, cold rooftops, or dusty factory floors. It’s engineered for the real world and ready for rough handling.

5. Fast Charging and Long Runtime
The built-in rechargeable battery gives you up to 4 hours of use, and recharges in just 2 hours using a USB-C cable. Whether you’re handling back-to-back inspections or conducting all-day surveys, the C5 stays powered and productive.

How to Use

1. Turn On the Camera and Navigate with Touchscreen

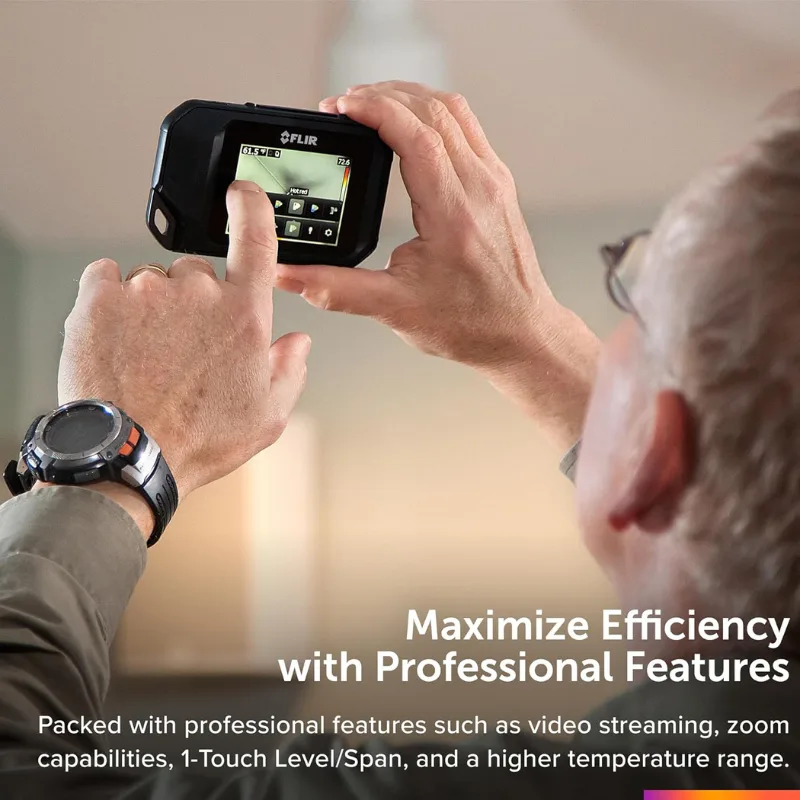

Start by pressing the power button located on the side of the FLIR C5. The device boots up within seconds, and you’re greeted with a bright, 3.5-inch capacitive touchscreen that supports swipe gestures and quick taps. You can scroll through image modes, folders, thermal settings, and gallery options effortlessly. The interface is designed to be intuitive even if you’re wearing gloves, and its compact build makes one-handed operation smooth, especially in tight inspection zones.

2. Choose the Right Image Mode for the Situation
Whether you’re checking a hot water pipe or scanning an electrical panel, the FLIR C5 lets you choose between four powerful imaging modes—standard infrared view, visual camera mode, MSX mode (which embosses real-world textures over thermal images), and Picture-in-Picture (which adds a thermal window to a visible image). These modes give context to heat patterns and help spot issues like moisture, overheating circuits, or poor insulation without second guessing.

3. Scan the Area with Focus-Free Imaging
With its focus-free thermal lens and high-resolution 5 MP digital camera, simply aim at the object or surface from as close as 0.1 meters (thermal) or 0.3 meters (MSX). The thermal sensor delivers <70 mK sensitivity, meaning it can detect even subtle temperature differences. Measurement accuracy ranges up to ±3°C or ±3%, covering an object temperature range from -20°C to 400°C. It’s ideal for home inspectors, maintenance teams, or anyone who needs reliable thermal data on the go.

4. Capture, Organize, and Analyze Onboard
Take high-quality thermal images and store them on the built-in memory or directly to the FLIR Ignite cloud using Wi-Fi. The C5 supports image annotations, gallery folder organization, and playback with temperature scale overlays. With built-in tools for adjusting emissivity, apparent reflection, and atmospheric interference, you get accurate readings that can be confidently used in reports, insurance documentation, or repair validation workflows.

5. Recharge and Get Ready for the Next Job
The built-in lithium-ion battery delivers up to 4 hours of runtime, perfect for most on-site inspections. It charges fully in about 2 hours using a standard USB-C cable and can operate continuously while plugged in using a 5V external power source. Whether you’re out in the field or stationed indoors, you won’t be left in the dark when it comes to getting the job done.

How to Take Care

1. Clean the Screen and Lens Without Damage
Always use a soft, lint-free microfiber cloth to clean the lens and touchscreen after each use. Avoid moisture, alcohol-based cleaners, or direct spraying. A clean lens ensures you don’t lose image quality, and a smudge-free screen helps you read temperature variations clearly in bright or low-light environments.

2. Store in a Clean and Secure Location
After each inspection, store the C5 in a padded case or its original box to prevent accidental drops or lens scratches. The camera is built tough with IP54-rated housing and 2-meter drop resistance, but protective storage ensures longevity, especially if you travel between job sites frequently or keep it in toolboxes.

3. Avoid Extreme Weather Conditions and Moisture
Even though the camera is rugged, it’s best not to expose it to extreme weather when not in use. Avoid direct sun, freezing cold, or high humidity when storing. Operating temperatures range from -10°C to 50°C, while storage temps can vary from -40°C to 70°C. Keeping within this range maintains accuracy and battery life.

4. Keep the Battery Healthy with Proper Charging
Always use the provided USB-C cable for charging and avoid draining the battery fully before plugging in. For long-term storage, charge the battery halfway and turn off the device to avoid deep discharge. Battery care is crucial for maintaining that 4-hour runtime and ensuring consistent performance over the years.

5. Maintain Software and Stay Connected
Connect to Wi-Fi when available and sync to FLIR Ignite cloud to back up images, organize folders, and access files from your desktop. Also, check for firmware updates regularly, which can include performance improvements, new features, or bug fixes. Staying updated ensures your camera is functioning at its peak.

Safety Tips

1. Keep Away from Children and Untrained Users
Though it looks like a compact point-and-shoot camera, the FLIR C5 is a professional thermal imaging tool. Keep it away from children and untrained individuals. Mishandling could lead to lens misalignment, firmware issues, or accidental deletion of important inspection data.

2. Don’t Use Around Live Circuits Without Precautions
Always maintain electrical safety when using the device near energized equipment. Although the FLIR C5 offers non-contact thermal inspection, it’s critical to wear PPE and follow best practices when scanning high-voltage areas to prevent electrical hazards or misleading readings.

3. Secure it While Inspecting Overhead or High Surfaces
If you’re working above your head or on a ladder, make sure to attach a wrist strap or mount it to a tripod. A fall from even shoulder height can result in damage. The camera is tough, but why test fate when a simple strap can save your investment?

4. Avoid Overheating and Water Immersion
The FLIR C5 is not waterproof. It’s protected against dust and water splashes (IP54), but never submerge it or expose it to heavy rain. If the device overheats from long usage or direct sunlight, allow it to cool before reusing to prevent sensor drift or internal damage.

5. Only Use Official Chargers and Cables
To maintain battery health and comply with warranty conditions, always use FLIR-approved USB-C cables and power sources. Using off-brand or fast-charging adapters can cause inconsistent charging or damage internal circuits, risking your device and stored inspection data.

Why the FLIR C5 is the Smartest Compact Thermal Camera You Can Carry

The FLIR C5 Compact Thermal Camera is a feature-rich, rugged tool designed for pros who need big results from a small package. With a crisp 5 MP visual camera, multi-mode thermal imaging, and <70 mK sensitivity, it delivers unmatched clarity in identifying hidden electrical faults, water leaks, insulation gaps, and more. The MSX technology overlays real-world textures onto infrared imagery for instantly readable reports. You get 4 hours of battery life, fast USB-C charging, IP54 protection, and cloud-sync via FLIR Ignite—everything packed into a 5.4-inch body that fits in your palm. Whether you’re a home inspector, maintenance engineer, HVAC tech, or restoration pro, the FLIR C5 helps you catch problems early, work smarter, and deliver results that clients trust—anytime, anywhere.
