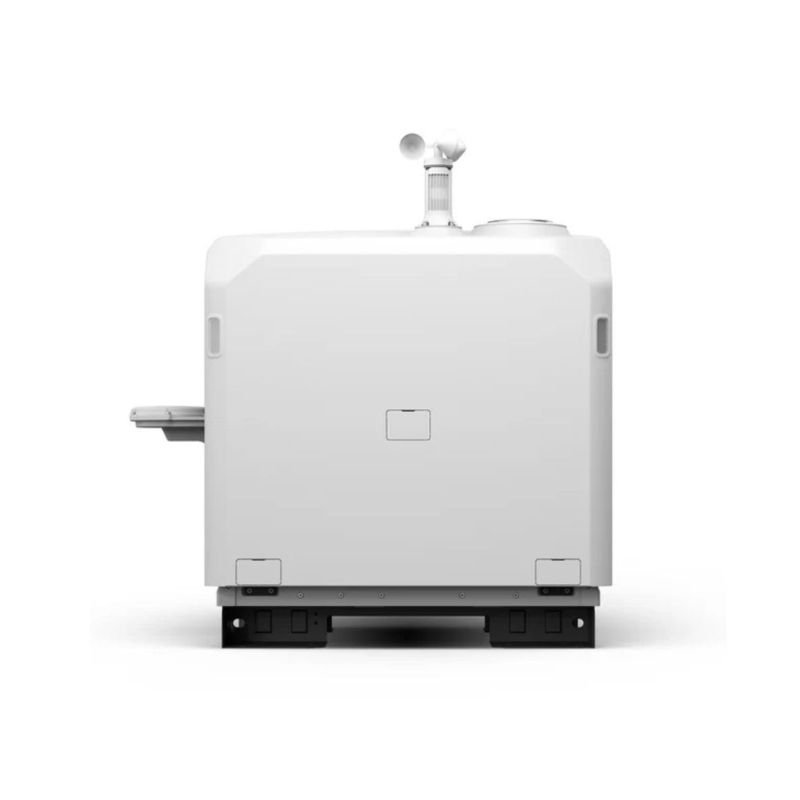

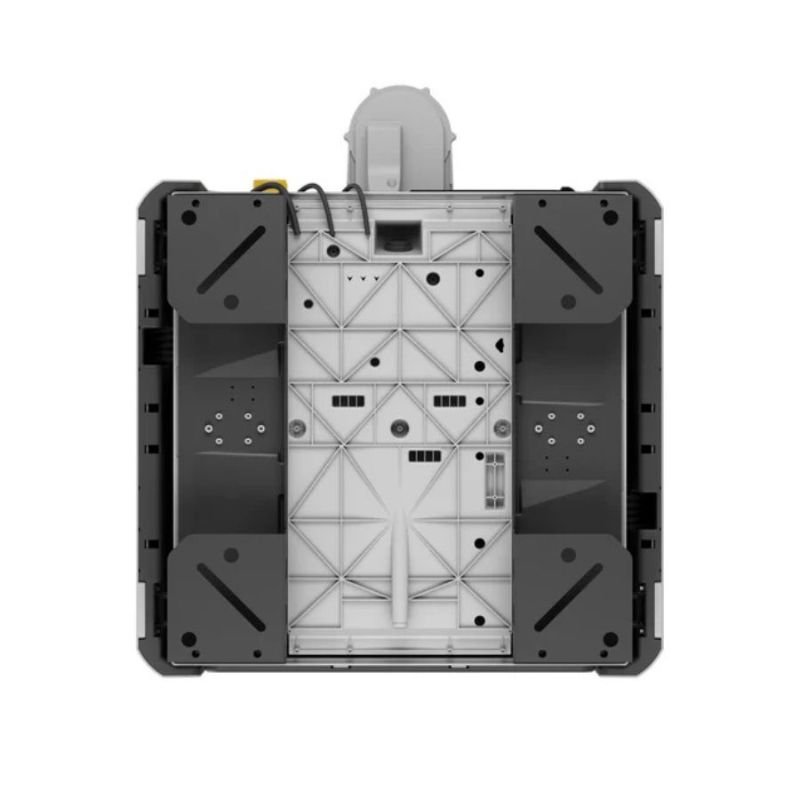

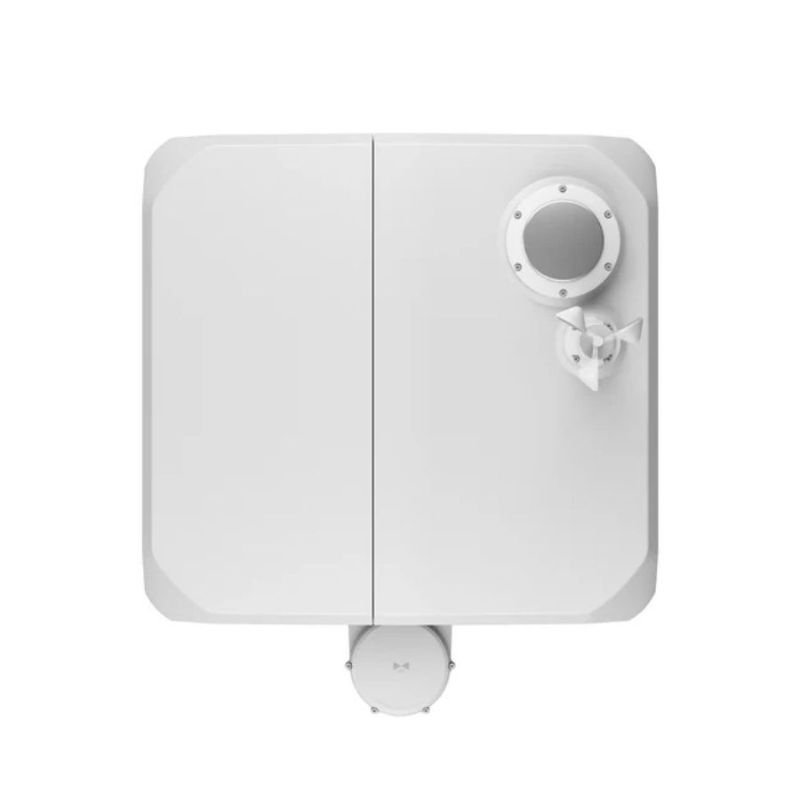

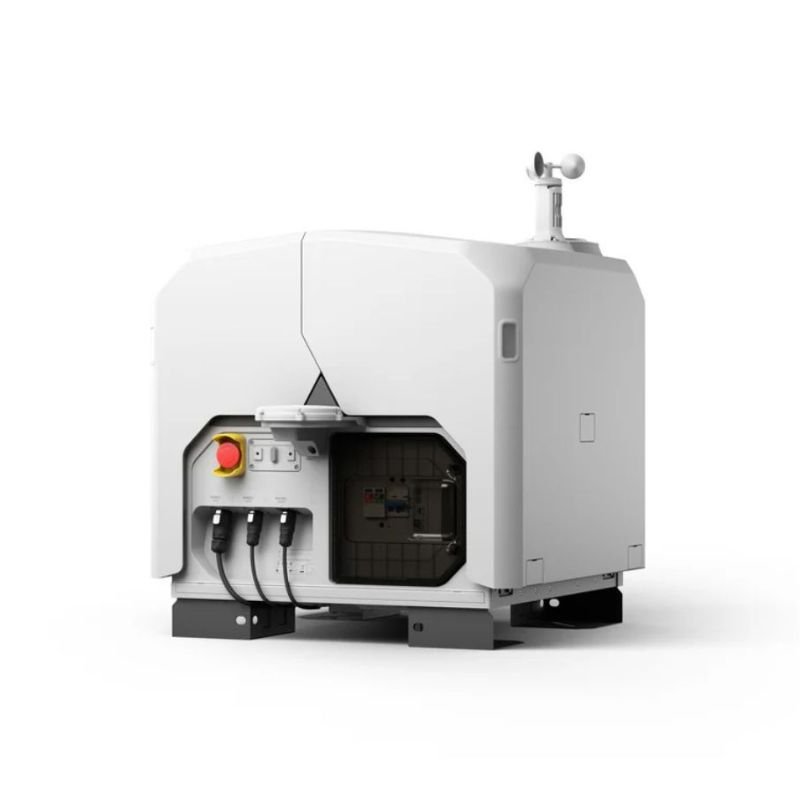

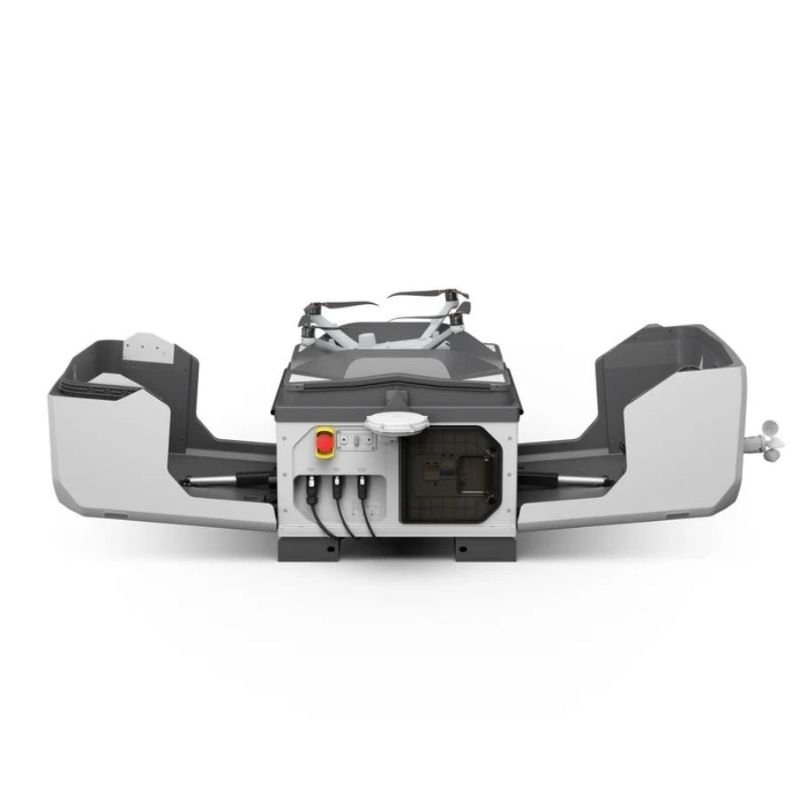

DJI Dock 3 Autonomous Docking Station for Matrice 3D/3TD

Video Transmission

Under ambient conditions of 25° C (77° F) and with the drone battery at 15% after landing, it takes approximately 27 minutes to recharge the battery to 95%. Therefore, the minimum interval between two flights is 27 minutes. DJI Dock 3 does not support automatic battery replacement.

DJI Dock 3 supports one drone across multiple docks (multi-dock operation). However, it does not support multiple drones using a single dock.

Yes, it supports multi-dock tasks. However, when paired with the D-RTK 3 Relay Fixed Deployment Version, multi-dock tasks are not supported.

Yes, the edge computing module can be used but requires an additional external power source and network connection.

DJI Dock 3 is compatible only with the DJI Matrice 4D Series drones.

• Cooling activates when ambient temperature exceeds 5° C (41° F) and the drone battery exceeds 35° C (95° F). It deactivates when battery temperature falls below 30° C (86° F).

• Heating activates when ambient temperature is below 5° C (41° F), dock temperature is below 35° C (95° F), and battery temperature is below 35° C (95° F). It deactivates when dock or battery temperature exceeds 35° C (95° F).
  Firmware updates may further optimize this logic.

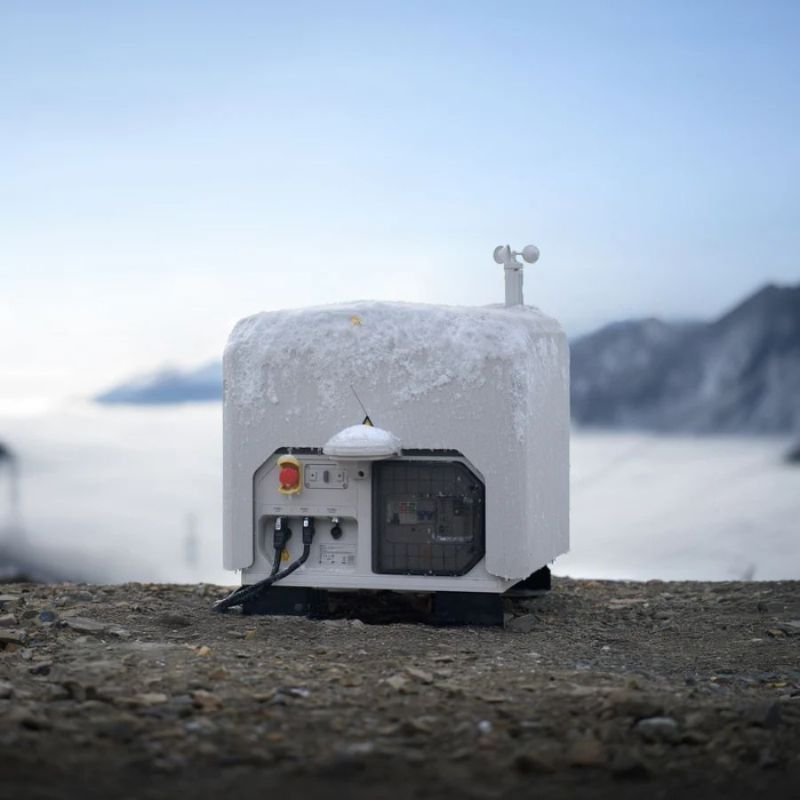

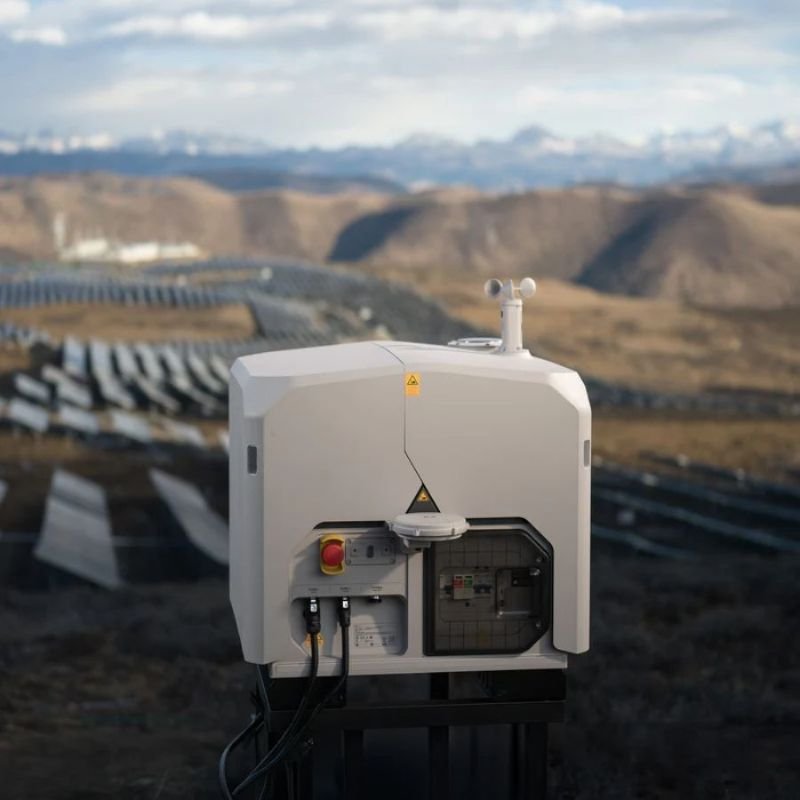

It should be installed in an open environment with stable power and internet access, at altitudes not exceeding 4,500 meters.

The dock can operate normally in winds up to 12 m/s and rainfall up to 2 mm/h.

• Follow all local regulations for installation.

• Ensure safety when loading the dock onto the vehicle and avoid applying force to the RTK module.

• Securely fix the dock base to the vehicle bracket and tighten lock nuts.

• Use a safety rope to connect the dock properly to the vehicle.

• Install the Vehicle-Mounted Gimbal Mount correctly.

• Apply the included driving warning sticker to the dashboard.
  Refer to the Installation and Setup Manual for detailed procedures.

• Parking slope must be under 3° during operation.

• Complete remote dock calibration in the cloud before flight.

• Both vehicle and dock must remain stationary during flight. Any movement will trigger the drone to return to its relative alternate site.

• Pay attention to road safety and height restrictions when driving into or out of underground garages.

• Ensure the dock cover is closed while driving.

• When using two docks on one vehicle, add both to the same project to ensure safe takeoff and landing.

No, it does not.

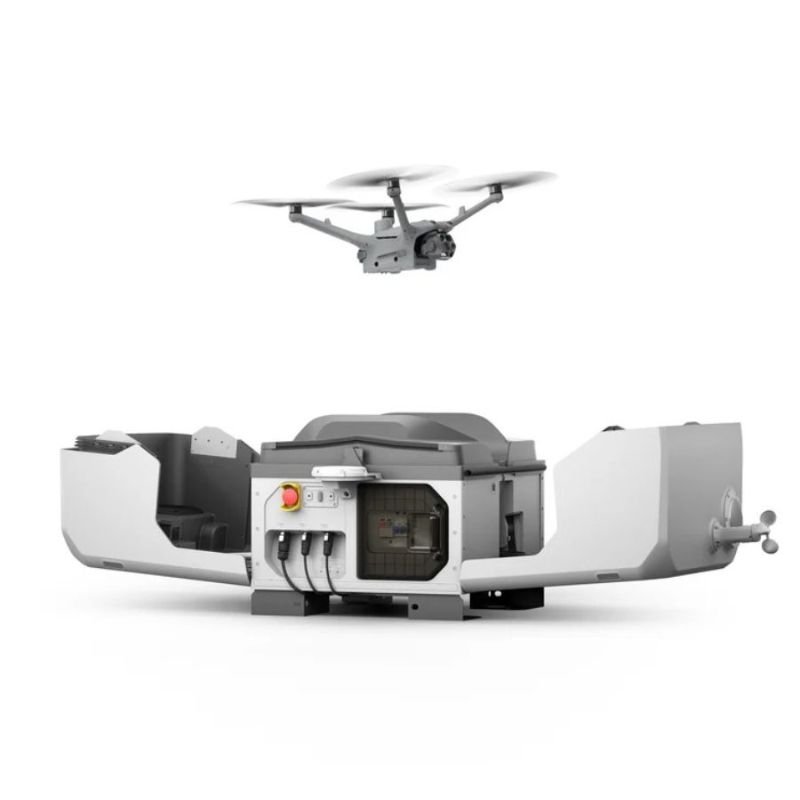

Precision landing is achieved using the RTK positioning system along with visual markers on the dock’s landing pad and inside the cover.

• Without grid power: Press once, then press and hold the multifunction button inside the electrical cabinet.

• With grid power: The backup battery powers on automatically.

Turn off the AC power switch, then press once and hold the multifunction button inside the electrical cabinet to power off the backup battery.

DJI Dock 3 supports the DJI Matrice 4D Series and DJI Matrice 4 Series drones.

The DJI Matrice 4D Series currently has two versions: DJI Matrice 4D and DJI Matrice 4TD.

IP55

Only the 4/3 CMOS wide-angle camera on the DJI Matrice 4D supports mapping without ground control points (GCPs).

Avoid exposing the infrared camera lenses to strong energy sources such as sunlight, lava, or laser beams, as this may permanently damage the camera sensor.

• DJI Matrice 4D Series supports IP55 protection.

• Maximum flight time is 54 minutes.

• Supports a higher payload capacity.

• Allows airborne relay operations, enabling one drone to act as a high-altitude relay to solve signal issues in mountainous areas.

• Arms are non-foldable.

• Replace propellers every 12 months or after 500 flight hours as anti-icing efficiency decreases over time.

• Avoid scratching or touching the propellers with fingers. Do not clean with oil-based or alcohol-based solvents, which can damage the anti-icing layer.

• Propellers are dynamically balanced; always replace with propellers from the same package and do not mix with others.

• Replace deformed or damaged propellers immediately, along with corresponding washers and screws. Do not reuse them.

To Provide better noise reduction

Yes, they can be controlled with DJI RC Plus 2 Enterprise for manual flight.

No

Link two drones with separate remote controllers. On remote controller A, set the aircraft as the Main Aircraft (operating drone) in the DJI Pilot 2 app. On remote controller B, set the aircraft as the Relay Aircraft. Wait for automatic re-linking. Once completed, the connection topology status can be checked on the main page.

No, currently airborne relay is not supported with DJI Dock 3.

Yes, they can. However, the remote controller must be updated to the latest firmware before use.

Yes. For optimal charging speed, it is recommended to use the DJI 100W USB-C Power Adapter or other chargers with 100W+ output that support the PD protocol.

Yes, it is compatible with MSDK.

No, it does not support Matrice 3D Series drones.

The battery can be charged using either the DJI Dock 3 or the DJI Matrice 4D Series 240W Charging Hub.

The 240W Charging Hub offers two charging modes, selectable via the mode switch on the side:

Using the 240W Charging Hub:

No, it does not support charging via other USB-C chargers.

Yes, the charging hub can be connected to the SDC port of a DJI Power series power station. Ensure the power station firmware is updated to the latest version.

No, the battery must be removed from the aircraft for charging.

Yes, the battery operates between -20° to 45° C (-4° to 113° F). Battery life may be reduced in low temperatures, so plan flight times accordingly.

They are designed for mounting a parachute or other payloads.

When paired with designated DJI aircraft and DJI Dock, it can be installed at a high location to act as a relay, helping to overcome signal obstruction issues.

Connect its Type-C port to a cable and activate it using the DJI Enterprise app or DJI Assistant 2 (Enterprise Series).

• After replacing the aircraft, re-link it with DJI Dock to restore the connection to the relay station.

• After replacing the dock, re-link the relay station with the dock.

• If the cable distance between the relay station and DJI Dock 3 is less than 100 meters, power the PoE module directly via the dock’s PoE output port using an Ethernet cable.

• If the cable distance exceeds 100 meters, an additional PoE power supply must be purchased.
  Recommendation: Use a Type 4 PoE power supply with output over 30 W.

• The Relay Fixed Deployment Version only supports relay mode and is designed for fixed deployment with DJI Dock 3.

• The Multifunctional Station supports relay, base station, and mobile station modes, and can operate with various DJI drones.

It works with DJI Dock 3 and DJI Matrice 4D Series drones.

Use a Matrice 4D Series aircraft and remote controller to evaluate the intended relay location based on DJI Pilot 2 app instructions, then deploy the relay station according to the results.

No, it cannot.

Yes. When used as a relay station for DJI Dock 3, the drone checks RTK data quality from both the dock and the relay station and selects the best data source to ensure reliable positioning.

Yes, it has a built-in backup battery that allows temporary operation. Power supply should be restored promptly.

Only one drone can be connected at a time.

The DJI Enterprise app.

Yes. The relay station should be deployed within 1 km of DJI Dock 3, with a clear line of sight and no obstructions. During the linking process, the distance between the relay and dock must be less than 100 meters.

In unobstructed and interference-free conditions, it can extend video transmission up to 25 km.

No, it cannot operate independently.

The DJI AS1 Speaker supports record & broadcast, file input, and text-to-speech functions*. It also provides real-time broadcasting and echo suppression, improving efficiency during emergency search and rescue operations. The spotlight and speaker can be used independently or together to suit various operational scenarios.

DJI Matrice 4D Series and DJI Matrice 4 Series aircraft.

• Remove the bottom bracket of the speaker.

• Install the speaker before powering on the aircraft; do not install it while the aircraft is powered on.

• Tighten all screws and ensure proper sealing of the interface. When using with DJI Dock, retighten screws with the included hex key.

• Connect to the internet for speaker activation and compass calibration. Update firmware promptly if notified.

1. Installation affects the aircraft’s power and flight time; pay attention to flight safety.

2. Use the standard remote controller to play human voices for optimal sound. Avoid single-frequency sounds to prevent speaker damage.

3. Do not use near people or in urban areas with noise-sensitive structures to prevent accidents or injuries.

English and Mandarin Chinese.

Speak close to the remote controller or computer microphone, maintaining a steady pace for clarity.

Shortcuts can start or stop real-time broadcasting. These can be configured in the “Customize RC Buttons” section of the DJI Pilot 2 app.

Firmware updates occur when the speaker is installed on the aircraft. Update methods include:

The DJI AL1 Spotlight offers two lighting modes: constant and strobe, and supports enabling/disabling the gimbal follow function*. The spotlight and speaker can be used independently or together. A wide FOV lighting mode can illuminate a broader area in wide-angle mode.

DJI Matrice 4D Series and DJI Matrice 4 Series aircraft.

• Remove the bottom bracket before installation.

• Install before powering on the aircraft; do not install while powered on.

• Tighten screws on the aircraft and use the included hex key when used with DJI Dock.

• Connect to the internet for activation and update firmware if prompted.

1. Installing the spotlight disables upward obstacle avoidance, affecting power and flight time. Obstacle avoidance deactivates automatically when the spotlight is on.

2. Do not point the spotlight directly at people’s eyes.

3. The spotlight may become hot after prolonged use; avoid burns.

1. In high-altitude flights, water vapor or particulates may cause a white image; enable electronic defogging for better quality (supported in DJI Pilot 2 app).

2. Reduce brightness and turn on only when needed to minimize flight time impact.

Yes, it can be disabled in spotlight settings. When disabled, the spotlight keeps its current angle. Re-enabling restores alignment with the gimbal. The gimbal follow function defaults to enabled after aircraft restart.

Enable the wide FOV mode in the spotlight settings. The illumination range extends by offsetting the gimbals on both sides and works with the wide-angle camera at 1X zoom.

Shortcuts can turn the spotlight on, off, or strobe. These can be configured in the “Customize RC Buttons” section of DJI Pilot 2 app.

Firmware updates occur when the spotlight is installed on the aircraft. Update methods include:

• Remove the bottom adapter brackets from both devices.

• Install the speaker on the top interface of the spotlight and tighten screws securely.

1. Avoid dropping or impacting the devices to prevent damage.

2. The aircraft can be stored in a safety case with the spotlight installed.

DJI Matrice 4D Series and DJI Matrice 4 Series drones.

• Tighten the screws and ensure proper sealing of the interface. When using with DJI Dock, retighten the screws with the included hex key.

• Correctly attach the LiDAR positioning label on the dock cover as instructed in the manual when using with DJI Dock.

• Complete installation of the Obstacle Sensing Module accessories before turning on the aircraft. Do not install while the aircraft is powered on.

• Connect to the internet and activate the Obstacle Sensing Module as prompted. Update to the latest firmware if prompted.

• Keep the radar dome clean to avoid affecting obstacle avoidance performance.

• Rain, snow, fog, and dust can impact obstacle avoidance. The aircraft cannot actively avoid fast-moving objects due to safety system limitations. Fly with caution and take manual control when necessary.

Install the Obstacle Sensing Module on the aircraft; it will update along with the aircraft firmware. Firmware can be updated in four ways:

• Before installation or connecting/disconnecting device cables, always power off the dock.

• Do not press the dock cover forcefully during installation. Ensure the bracket is installed as shown in the diagram and avoid installing it in reverse.

• Use the correct screws as shown in the diagram, and make sure all screws are fully tightened.

• Do not place installation tools on the landing pad at any time. Before closing the dock cover, ensure the landing pad surface is free of foreign objects and dirt.

• Attach the included reminder sticker onto the cockpit’s control panel.

Continuous operation of the aircraft:

No

DJI Pilot 2 app and other software developed using MSDK.

Yes

DJI Matrice 4TD supports smart oblique capture in the oblique collection function of the area route.

The DJI Matrice 4D Series aircraft features 5-direction smart oblique capture, which allows data collection to be completed with just one route. In contrast, the DJI Mavic 3E features 3-direction smart oblique capture, requiring two routes to complete data collection.

Both the DJI Matrice 4D Series and the Zenmuse P1 feature 5-direction smart oblique capture. However, the DJI Matrice 4D Series’ smart oblique capture is in an “X” shape, while the Zenmuse P1’s smart oblique capture is in a “+” shape

DJI Matrice 4D supports precise mapping after enabling the RTK function.

DJI Dock 3 and D-RTK 3 Relay Station Fixed Deployment Version.

The Matrice 4D Series is only compatible with the DJI M30 Series’ flight routes when using the infrared thermal camera. It is not yet compatible with routes of wide-angle or zoom cameras.

No. Please confirm the applicable countries and regions with your dealer before purchasing.

No
