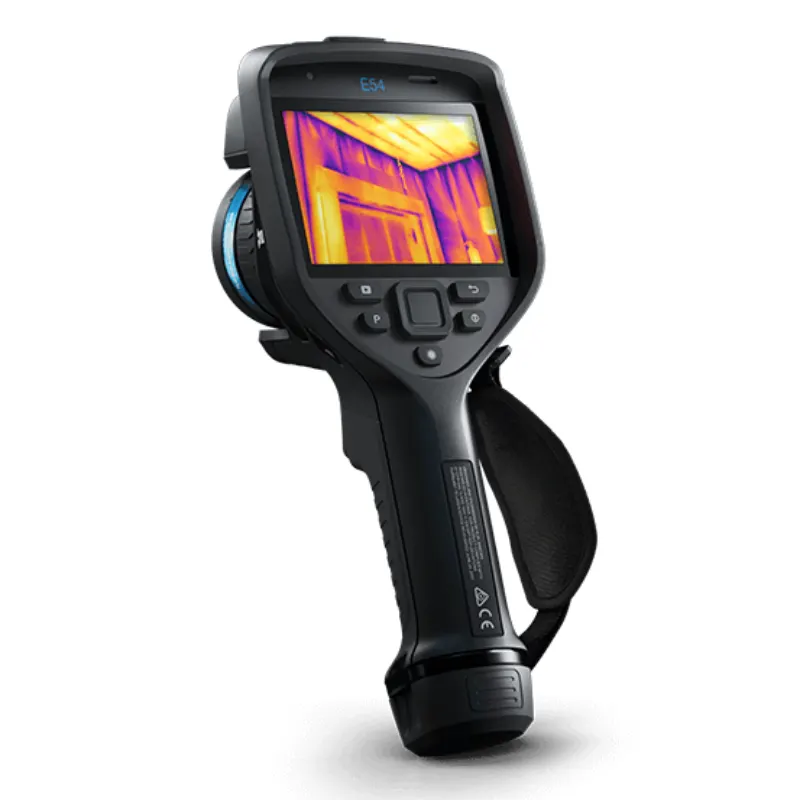

FLIR E54 24° Thermal Imaging Camera

Description

FLIR E54 24° Thermal Imaging Camera – Rugged Performance Meets Precise Diagnostics

The FLIR E54 24° Thermal Imaging Camera is your dependable partner in professional inspections, designed to offer advanced thermal imaging performance in a compact and field-ready form. With a high-resolution thermal sensor, intuitive interface, and versatile measurement capabilities, this tool allows technicians, inspectors, and engineers to confidently detect, document, and resolve heat-related issues in complex environments. Whether you’re diagnosing electrical faults, conducting predictive maintenance, or evaluating building efficiency, the E54 empowers you with sharp imagery, seamless data integration, and resilient construction.

Key Features Of FLIR E54 24° Thermal Imaging Camera

1. High-Fidelity Thermal Resolution and Sensitivity for Critical Detail
Equipped with a 320 × 240 infrared detector and <40 mK thermal sensitivity at 30°C, the E54 delivers excellent image quality and contrast for identifying even subtle temperature anomalies. It enables professionals to locate hot spots, insulation gaps, or moisture intrusion with precision, helping avoid potential failures and safety hazards before they occur.

2. Manual Focus and 4× Digital Zoom for Fine-Tuned Targeting
Control your inspections with manual focus and a continuous 1–4× digital zoom that allows you to zero in on small components or distant areas without losing clarity. This setup is ideal for varied environments where accurate framing and detailed targeting are essential for effective diagnostics.

3. Radiometric Video Recording and Picture-in-Picture Imaging
The E54 supports real-time radiometric video recording (.csq format) for capturing detailed temperature data as it happens. Combined with a centered picture-in-picture mode, you can overlay thermal visuals on standard imagery, enhancing clarity and context in reporting. It also allows for IR video streaming via Wi-Fi or USB.

4. Smart Spot Measurement Presets for Fast Analysis

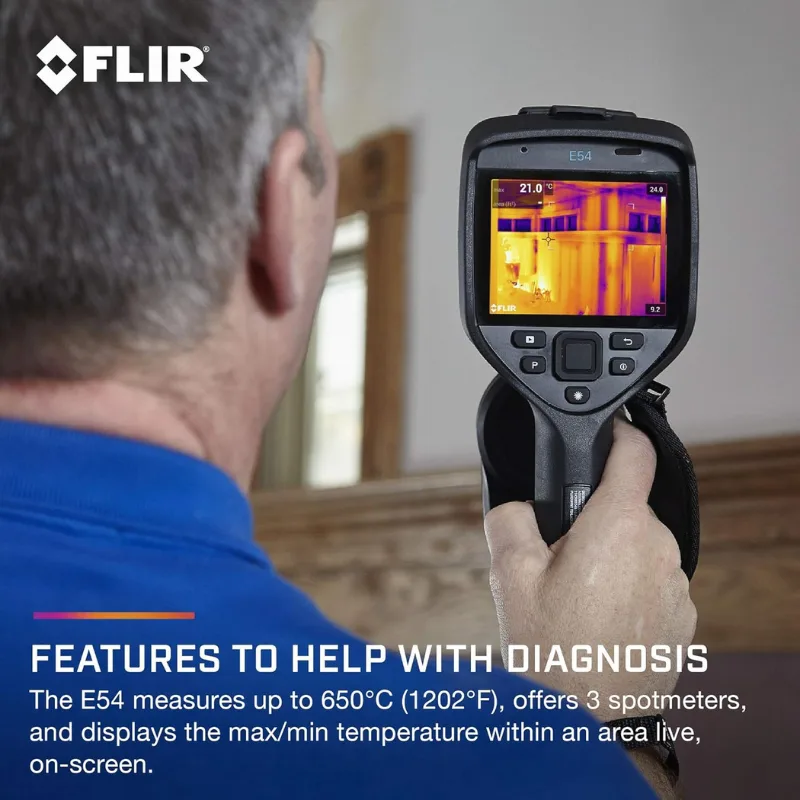

Select from user-friendly measurement presets like center spot, hot spot, cold spot, and custom spot groupings to speed up analysis during inspections. You can measure up to three points live, streamlining the process of locating irregularities in electrical, HVAC, or mechanical systems.

5. Intuitive Touchscreen with Voice Annotation Capability

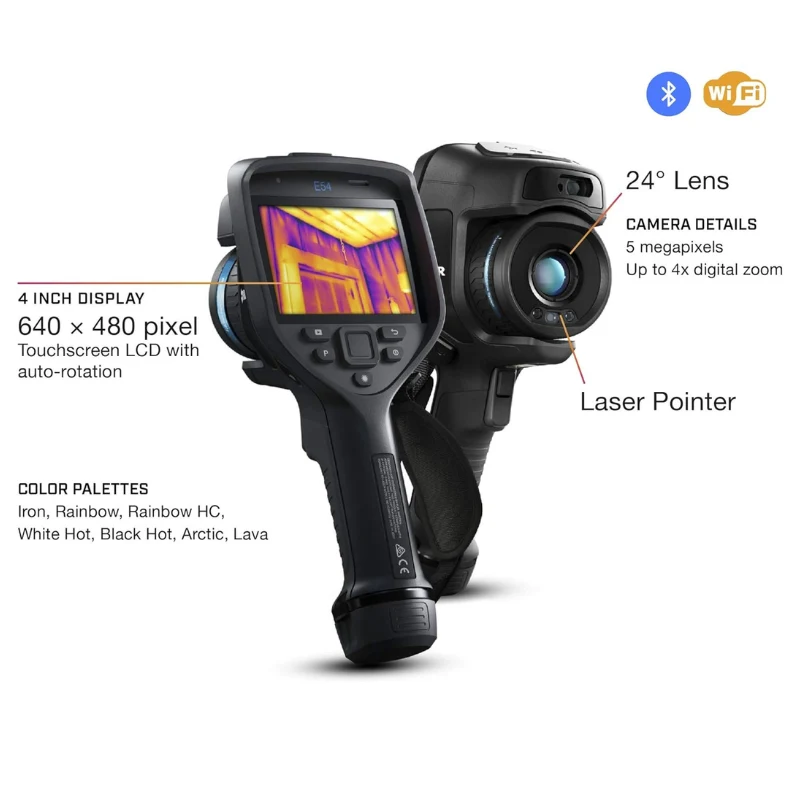

Navigate menus and image modes easily on the responsive 4-inch, 640 × 480 touchscreen with auto-rotation. Voice annotations of up to 60 seconds can be recorded directly onto images or videos using the built-in mic or via Bluetooth, reducing the need for note-taking during active inspections.

Why You’ll Love the FLIR E76 24° Thermal Imaging Camera

1. Powerful Performance in a Pro-Grade Package
Whether you’re inspecting transformers, scanning HVAC systems, or surveying a roof, the E76 provides the professional clarity and analytics you need. With detailed thermal imaging and advanced targeting features, it’s built to keep up with your workload.

2. Seamless Reporting with Image Annotations
Capture thermal and visual images, apply custom measurement tools, and annotate your data—all on the go. Add voice or text notes, label files, and organize folders directly from the touchscreen so you can create professional reports faster.

3. Full FLIR Ecosystem Integration
The E76 works effortlessly with FLIR software tools like FLIR Thermal Studio and FLIR Inspection Route. Transfer data via USB-C, stream to external monitors using HDMI, and back up files instantly for seamless collaboration and documentation.

4. Enhanced Imaging with UltraMax and Digital Zoom
Zoom in up to 4× digitally to isolate problem areas or take a wider view of equipment layouts. Combine this with UltraMax image enhancement for post-capture clarity that exceeds standard resolution—especially valuable when analyzing fine temperature differences.

5. Complete Kit for Immediate Use
Your E76 package includes everything needed to begin inspections immediately: camera with lens, two Li-ion batteries, charger, SD card, USB-C cables, HDMI adapter, lanyards, hard case, and documentation. It’s ready to go where you go, with zero delay.

How to Use

1. Unbox and Charge the Camera Before Operation

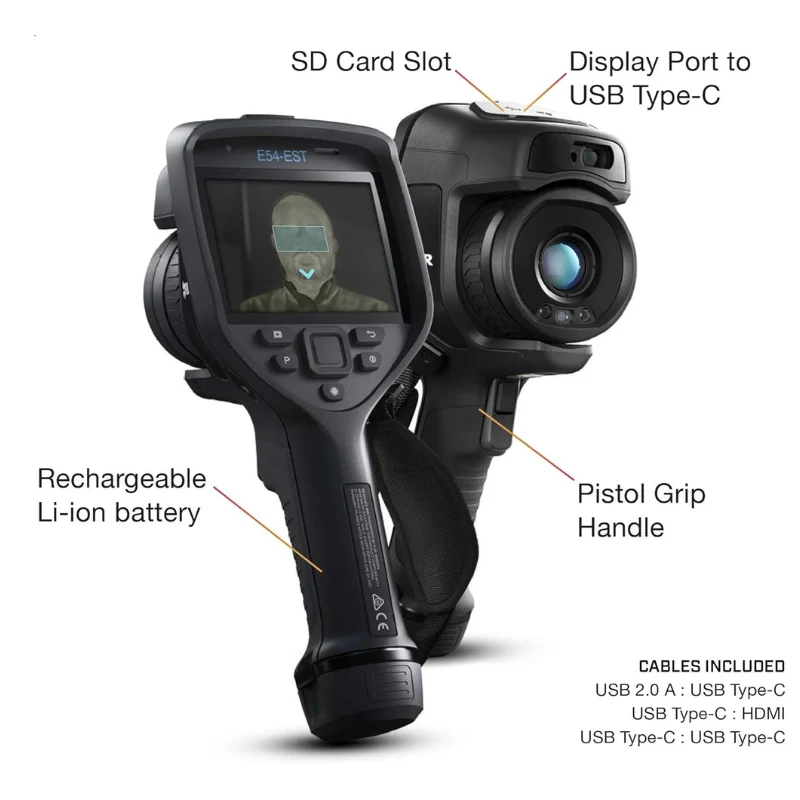

Begin by unpacking the FLIR E54 and all its included accessories like batteries, charger, cables, and SD card. Insert a rechargeable Li-ion battery and connect the charger to a power outlet. Press the power button to activate the 4-inch LCD touchscreen with auto-rotation. The responsive interface ensures smooth navigation across all menus, even with gloves, making it ready for professional inspections right out of the box.

2. Adjust the Manual Focus for Sharp Thermal Images
The E54 uses a manual focusing system, allowing you to fine-tune your view for perfect image clarity. The minimum focus distance is just 0.15 meters, so whether you’re inspecting electrical boards or large industrial machinery, you’ll always capture accurate thermal data. This gives you control over image sharpness and detail, which is vital for documentation and further analysis.

3. Select Your Thermal Palette and Measurement Preset
Cycle through a variety of color palettes including Iron, Arctic, Rainbow, Black hot, and White hot to highlight thermal differences based on the inspection need. You can also choose from several measurement presets—center spot, hot/cold spot, or three custom spots. These allow for quick, targeted temperature assessments on live thermal imagery and make anomalies stand out clearly.

4. Capture and Record Radiometric Images or Video
With the press of a button, capture high-resolution thermal images or record radiometric video in .csq format. These files include embedded temperature data, which can be analyzed later using FLIR software. Picture-in-Picture mode allows infrared overlay on visible imagery, helping to maintain spatial context. Real-time streaming is also available via UVC or Wi-Fi in formats like H.264 or MPEG-4.

5. Save, Annotate, and Transfer Inspection Data
Use the removable 8 GB SD card to store thermal and visible images. Add voice annotations via the built-in mic or Bluetooth headset, and use predefined text tags for quick reference. Transfer files via USB-C cable or over Wi-Fi to integrate your findings into FLIR Thermal Studio reports. With FLIR Inspection Route enabled, the camera supports guided inspection routines for efficient large-area scanning.

How to Take Care

1. Clean Lens and Display with Proper Tools Only
To ensure long-term clarity and avoid scratches, always clean the lens and touchscreen with a soft, dry microfiber cloth. Do not use abrasive cleaners, alcohol, or any liquid sprays. Always reattach the front lens cap after use, especially before placing the camera back into its case.

2. Use the Hard Transport Case for Safety
After each use, pack the E54, batteries, and accessories into the hard protective case included in the packaging. This prevents shock damage, scratches, or accidental misplacement during transport or field work, especially in rough environments or industrial job sites.

3. Keep the Camera Away from Extreme Environments When Idle
While the camera is rated to work from -15°C to 50°C, long-term storage should be between -40°C and 70°C to protect internal circuits. Avoid leaving it inside hot vehicles, near radiators, or exposed to direct sunlight or rain for extended periods.

4. Maintain Battery Life with Timely Charging
To ensure readiness at all times, recharge the battery after use—especially when conducting multiple inspections. Each charge offers more than 2.5 hours of continuous runtime. Always use the provided charger and cables, and never expose batteries to moisture or heat.

5. Update Firmware and Sync with FLIR Tools
Regularly check for firmware updates via FLIR software tools to enhance camera functionality, fix bugs, and improve stability. Periodically back up all images and inspection notes to a computer or secure cloud location to prevent data loss and ensure compliance.

Safety Tips

1. Avoid Pointing a Laser Toward People or Reflective Surfaces
The built-in laser pointer is a valuable tool for indicating thermal targets, but never point it at eyes, faces, or shiny surfaces like mirrors. Misuse can cause temporary vision discomfort and violate workplace safety protocols.

2. Operate in Dry Conditions Only
Although the E54 is built tough, avoid operating in wet or extremely humid conditions. While it may survive some splashes, it is not rated as waterproof. Wet conditions can affect image clarity, touchscreen sensitivity, and internal electronic components.

3. Mount Securely for Long-Term or Remote Viewing
If planning extended monitoring or thermal video recording, mount the E54 on a stable tripod using the standard thread. This reduces operator fatigue and eliminates shaky recordings, improving inspection accuracy during longer sessions.

4. Do Not Attempt to Open or Modify the Device
Opening the FLIR E54 or modifying internal components voids the warranty and risks damaging the sensitive thermal detector. For calibration or repair needs, always contact FLIR-authorized service centers.

5. Ensure Workplace Safety While Inspecting Live Equipment
When inspecting electrical systems or high-temperature machinery, wear safety gear and maintain a proper distance. The E54 offers non-contact measurement, but safety protocols should never be ignored during industrial inspections.

Why the FLIR E54 24° is a Reliable Thermal Imaging Partner for Field Professionals

The FLIR E54 24° Thermal Imaging Camera is built for reliability, simplicity, and accuracy. With its 320×240 IR resolution, <40 mK thermal sensitivity, and rich color palettes, it’s a versatile tool for electricians, maintenance engineers, and facility managers. The intuitive 4-inch touchscreen, voice and text annotation options, radiometric video capability, and support for FLIR’s Inspection Route make it ideal for routine and predictive maintenance. From capturing thermal anomalies to delivering professional-grade reports, the E54 strikes a perfect balance between performance and affordability. For professionals who need dependable diagnostics in the field, this is the thermal camera you can trust.
